Pipeline Overview

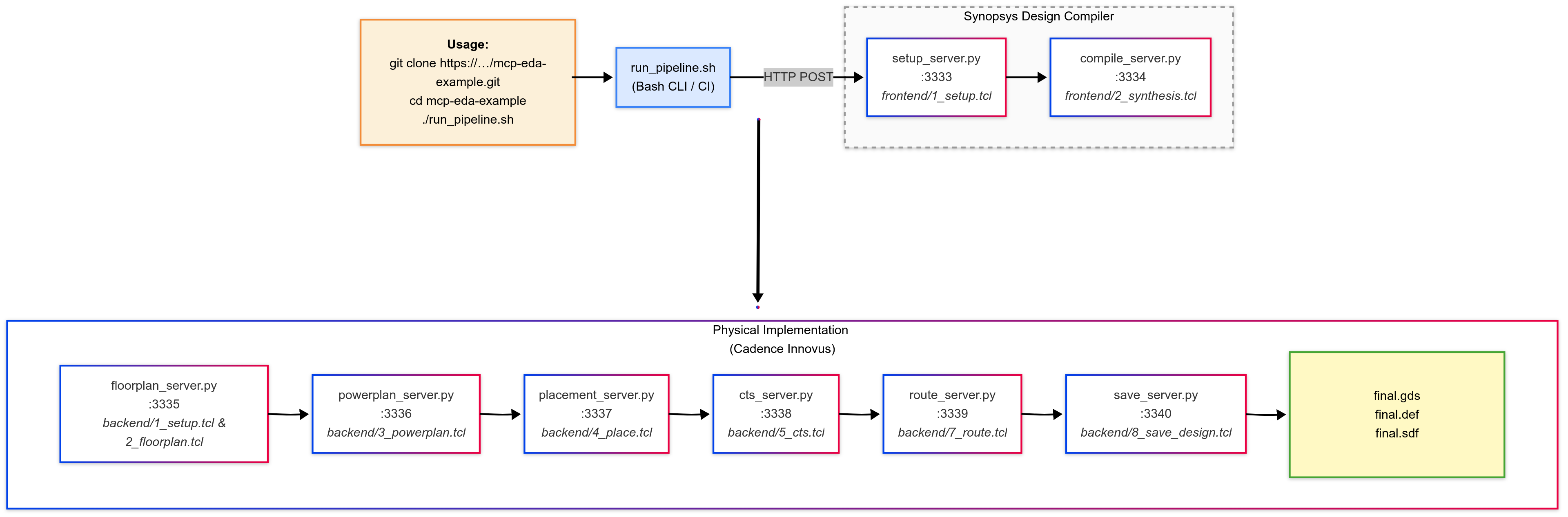

The MCP-EDA Server implements a fully automated, end-to-end digital design flow by exposing each major EDA step as a lightweight HTTP microservice. Users simply clone the repository and invoke a single CLI script—run_pipeline.sh—to drive the complete flow, from RTL synthesis through final GDSII/SDF export.

---

Quick Start

Get started with the MCP-EDA pipeline in just three commands:

git clone https://github.com/AndyLu666/MCP-EDA-Server.git
cd mcp-eda-example
./run_pipeline.sh

This script turns your shell (or CI job) into the orchestrator: it issues HTTP POST calls to each stage’s server in turn.

Synthesis Stage (Synopsys Design Compiler)

The synthesis stage transforms your RTL design into a gate-level netlist using Synopsys Design Compiler.

Setup Server

Service: setup_server.py
Port: 3333

Loads the RTL, applies constraints via frontend/1_setup.tcl, and generates a mapped netlist.

Compile Server

Service: compile_server.py
Port: 3334

Runs the actual compile and optimization commands defined in frontend/2_synthesis.tcl.

Physical Implementation Stage (Cadence Innovus)

The physical implementation stage transforms the synthesized netlist into a complete physical layout using Cadence Innovus.

Floorplan Server

Service: floorplan_server.py
Port: 3335

Defines die outlines, I/O pin assignments, and initial floorplan using:

• backend/1_setup.tcl
• backend/2_floorplan.tcl

Power Plan Server

Service: powerplan_server.py
Port: 3336

Builds the on-chip power grid using backend/3_powerplan.tcl.

Placement Server

Service: placement_server.py
Port: 3337

Performs timing-driven standard-cell placement using backend/4_place.tcl.

CTS Server

Service: cts_server.py
Port: 3338

Synthesizes and balances the clock tree using backend/5_cts.tcl.

Route Server

Service: route_server.py
Port: 3339

Carries out global and detailed routing with DRC checks using backend/7_route.tcl.

Save Server

Service: save_server.py
Port: 3340

Finalizes the design, writing out final files using backend/8_save_design.tcl.

Final Deliverables

At the end of the pipeline you automatically obtain:

File	Description	Format
final.gds	GDSII layout	Binary layout format
final.def	DEF file	Design Exchange Format
final.sdf	SDF timing	Standard Delay Format

Additional outputs include detailed timing reports, DRC reports, power analysis, and area utilization summaries from each stage.
